Item specifics
  • Item Type: Bluetooth Car Kit
  • Brand Name: YATOUR
  • Item Weight: 0.3
  • Special Features: A2DP
  • Item Size: 74 x 62 x 20 mm
  • Model Name: YTBTA-HON2Y
  • Material Type: Aluminum Alloy
Product Description



Brief Intrudution:

YT-BTA is installed to original CD changer port via its harness. Ituses bluetooth AVRCP control technology to achieve double way controllingmobile phone and other bluetooth devices via car stereo and steering wheelcontrol. It supports hands free phone call (HFP) and Bluetooth music play (A2DP) via car stereo. YT-BTA also offers 3.5mm auxiliary input to support other external sound sources and standard 5V USB charging port.

YT-BTA is easy to install and control, with anti-seismic and anti-interference,with Hi-fi qualitysound rivaling original CD. It could be called as quasi OEM car kit.







questions



Questions:

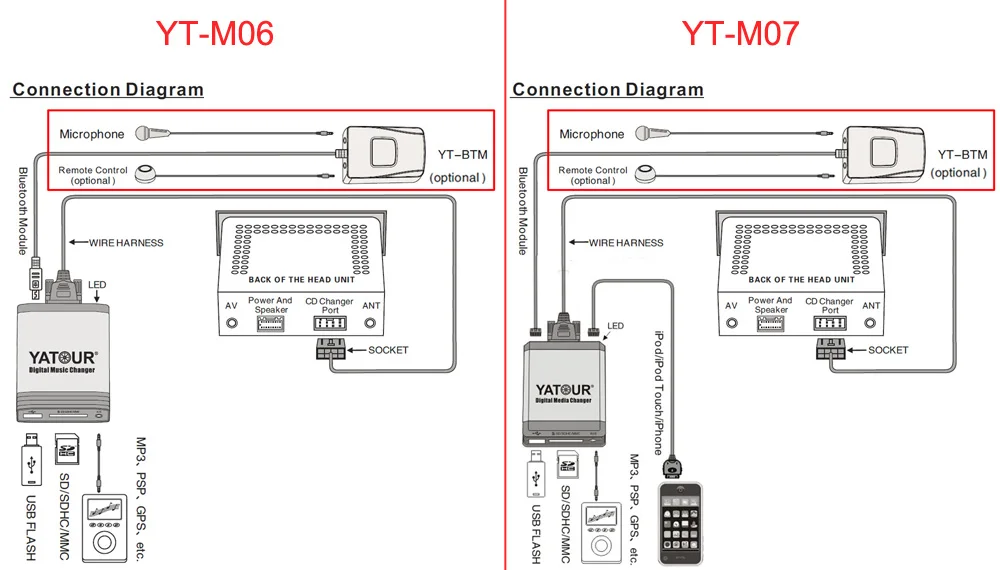

Dear Yatour, you have BTA, M06 and M07 models for the same car, what are differences between this 3 models?



Answer:

1. Via BTA, you can control mobile phone and other bluetooth devices via car stereo and steering wheel control. It supports hands free phone call (HFP) and Bluetooth music play (A2DP) via car stereo.

2. M06 support playing music via USB, SD and AUX device like MP3,etc.

3. M07 = M06 + support iPod function

4. BTM ( Bluetooth Module) is optional function for the M06 and M07. After connect the BTM to the M06 or M07, M06 and M07 items can support hands free call the Bluetooth A2DP music via car stereo.



M06-M07













Description







Works with following vehicles:



HON2-work





1. YTBTA-HON2Y will allow you to keep or reserve the usage of  existing CD changer after installing our interface on your car

2. Able to hook up existing CD changer: Switching to “CD” mode once or twice on the radio panel to switch between YATOUR and existing CD changer




Notice: Not work for Acure TL 2004-2008




Factory CD-changer plug was showed as follows

HON2-PLUG




If the CD changer port of your radio is occupied by NAV, AUX, XM  , you need to buy a  Y cable (   YT-HONY   ) to bridge.

HON2-CABLE





Product Detail:
11
12

13


VW-CDC


Features:

1.Plug & play: installed via original CD changer port, easy and fast,perfectly integrated with the car.
2. Handsfree phone call (HFP): supports Answer/Hang up etc., via car radio buttons and steeringwheel buttons.
3.Wireless A2DP playback: easily streaming music of Bluetooth devices intofactory car stereo system.
4.Bluetooth AVRCP Control:  controls Prev/Next Track, Pause/Play, Fast forward/backward via car radio buttons or steering wheelbuttons easily and safely.
5. AUX input: supports 3.5mmauxiliary input, able to connect any external audio sources
6.Easy Charge: offers 5V/1A standard USB charging port, no need to worry about phone battery.
7. Hi-fi sound quality: Connected to car stereo via wireharness, no interference and no loss of sound quality,rivaling original CD sound.



Remote Control Unit ( optional fuction )

Remote Control Unit is offered as an OPTIONAL part of YT-BTA. This  Unit integrates Answer/Hang-up button, voice control and next/forward buttons.  Please click here " Remote Control Unit" to order it if you need.

BTA-remot-11

BTA-remote

Specification:

Voltage input:11V - 14V DC
Standby Current : 20mA
Operating Temperature: -35℃~+75℃
DAC Resolution : 20bit
Total Harmonic Distortion : 0.05%
SN Ratio : 90dB
Frequency Response : 20HZ-20KHZ


BTA-accessories


Size:

Module size: 74 x 62 x 20 mm
CDC plug cable length:95cm
AUX cable length: 50cm
Standard Packing box: 64 x 93 x 144 mm
Half-size packing box: 150 x 60 x 210 mm
Module weight: 50g
Gross weight: 230g-410g

YTBTA-BOX
