Item specifics
  • Item Type: Bluetooth Car Kit
  • Material Type: Plastics
  • Model Name: z117941
  • Special Features: MP3 Player
  • Brand Name: VODOOL
  • Size: Approx.8.0*7.0*3.2cm/3.15"*2.76"*1.30"
  • Package weight: 2.1 oz/61g
  • The audio cable length: Approx.70cm/27.56"
  • Frequency range: 87.5-108.0Mhz
  • Output Frequency: 20Hz-15KHz
  • Supply voltage: 12-24V
  • USB Maximum support: 32G
Product Description

HTB1ZroKOVXXXXbWXVXXq6xXFXXXP

1             1         12

HTB1SYQQOVXXXXa2XFXXq6xXFX1XXf            134           HTB1SYQQOVXXXXa2X2FXXq6xXFXXXf


Feature:
Wirelessly transmit phone call from Bluetooth mobile phone to the car FM stereo system
Dual USB output to charge other devices (DC 5V/2.1A)

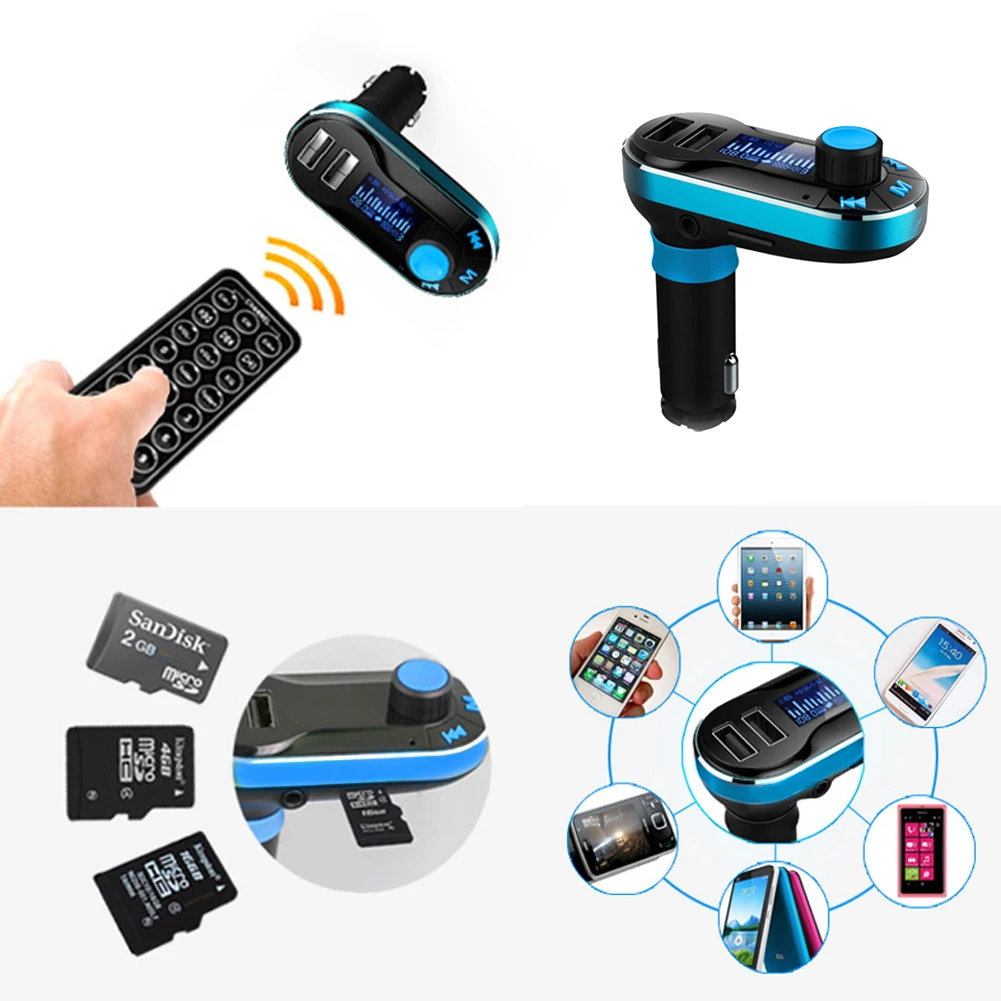

Supports USB/SD/AUX-IN
Switch to Hands-free mode automatically from music playing status when receiving calls
Draws power from the cigarette socket in the car (DC 12V/24V)

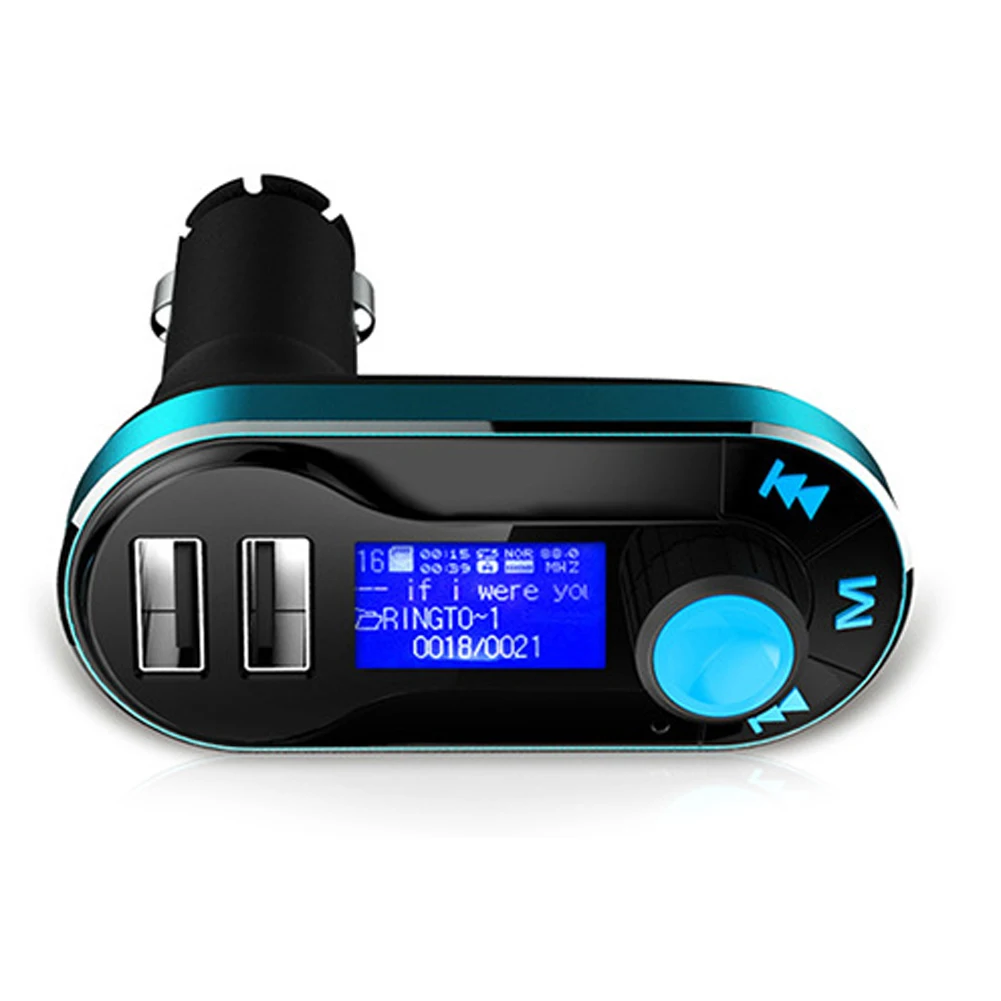

With LCD display
206 channels optional from 87.5-108MHz

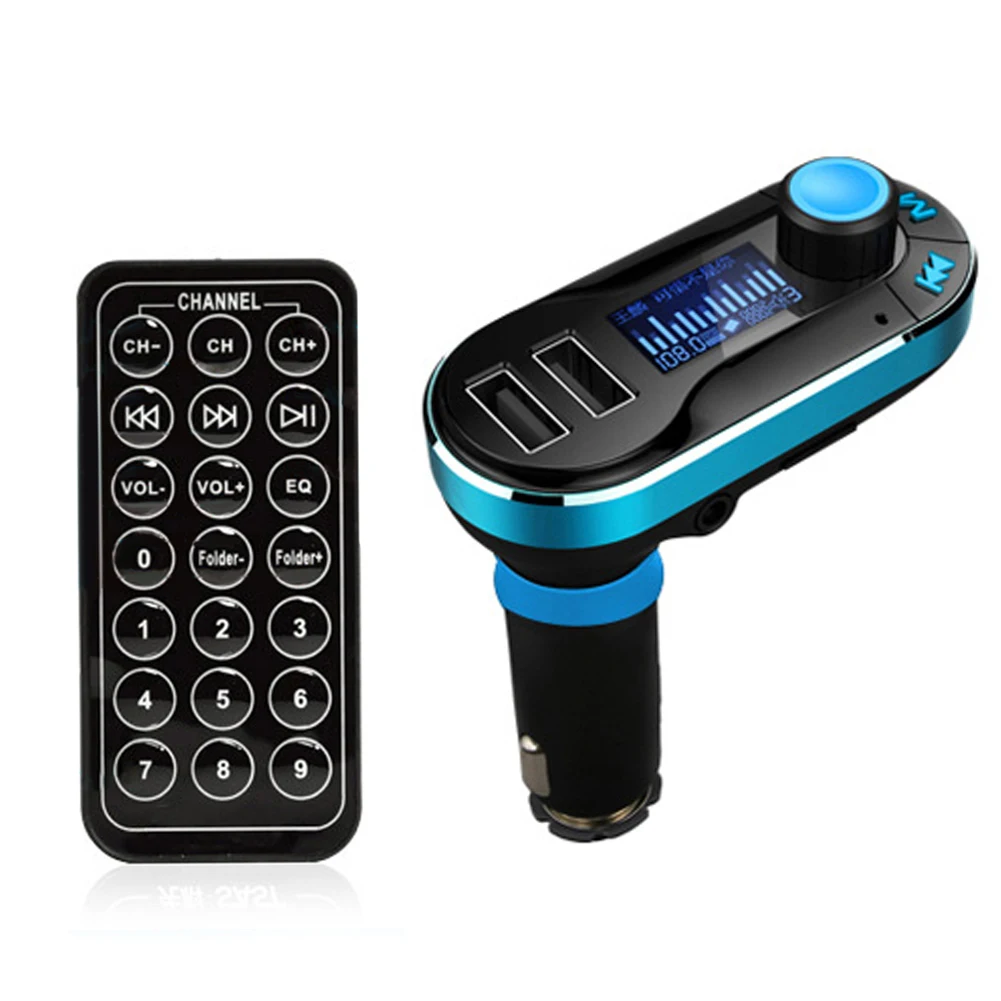

With remote controller
With compact portable design
Bluetooth hands-free function

Specification:
Size: Approx.8.0*7.0*3.2cm/3.15"*2.76"*1.30"
Package weight: 2.1 oz/61g
The audio cable length: Approx.70cm/27.56"
Frequency range: 87.5-108.0Mhz
Output Frequency: 20Hz-15KHz
Supply voltage: 12-24V
Rated current: 90mA
Power consumption: 1W
Work temperature: 0-50 degrees
Support file format: MP3/WMA
USB Charge output: 5V/2.1A
Music format: MP3 format
USB Maximum support: 32G
Micro SD Maximum support: 32G
Bluetooth version 3.0 + EDR
Transmit distance: Approx.10m/32.80ft
Operating system: Win XP/Win vista/Win7
SNR ≥60dB

How to use it:
Using FM transmitter function:
Plug the FM transmitter into your vehicle\'s cigarette lighter or power port
Tune your radio to an unused FM frequency, then match with the same frequency of this product
Insert a USB flash drive or Micro SD card which containing MP3 files into USB port or memory card slot of this product accordingly, it will play and transmit the MP3 files automatically
Line-in function for: Use the included audio cable to connect an MP3/Mp4 players or another external devices to the AUX input of this product
This item will play and transmit the music files of MP3/Mp4 players or other external devices, and all functions of this item will be controlled by the external device

Using Bluetooth function:
Plug the FM transmitter into your vehicle\'s cigarette lighter or power port
Tune your radio to an unused FM frequency, then match with the same frequency of this product
Using Bluetooth for the first time, you need to pair your mobile phone with this product. Activating your phone\'s Bluetooth function, then search new device. When the mobile phone detects this product (named as CAR KIT), Please pair and connect by using the original password: 0000)
In the music playing mode, when there is an incoming call, this unit will automatically switch to telephone mode
Note:
The Bluetooth indicator light which on the top of screen will stop flashing after the Bluetooth connected with your mobile phone

Bluetooth Calling:
Please press the Answer/Hang off button to answer the incoming call
Please press the Answer/Hang off button to hang off a call
When making a call, you can only dial the phone number by your mobile phone, but once the call connected, you can use the hands-free function to enjoy it


1 X Bluetooth MP3 Player FM Transmitter Music Adapter
1 X Audio Cable
1 X User Manual
