Item specifics
  • Item Type: Bluetooth Car Kit
  • Brand Name: YATOUR
  • Item Size: 150 mmx 105mm x 60mm
  • Special Features: Hands free phone call,bluetooth A2DP music playback
  • Model Name: YT-BTM
  • Material Type: alloy
  • Item Weight: 0.18
  • For: Yatour Digital Music Changer or Yatour iPod Car Adapter
  • Compatible: Bluetooth version 2.1
  • digital media format: MP3
Product Description
Yatour Bluetooth module kit requires to be used together with Yatour Digital Music Changer or Yatour iPod Car Adapter.Yatour Bluetooth module kit integrates wireless hands-free operation with Answer/Hang up features (HFP) and wireless audio playback (A2DP) feature into car factory stereos.
Customs code (HS code):8522909100

If you already have YT-M06 or YT-M05 or YT-M07 on hand and you want to purchase YT-BTM , Please check your BT slot carefully and notify the seller the type of BT slot you own before your purchase.

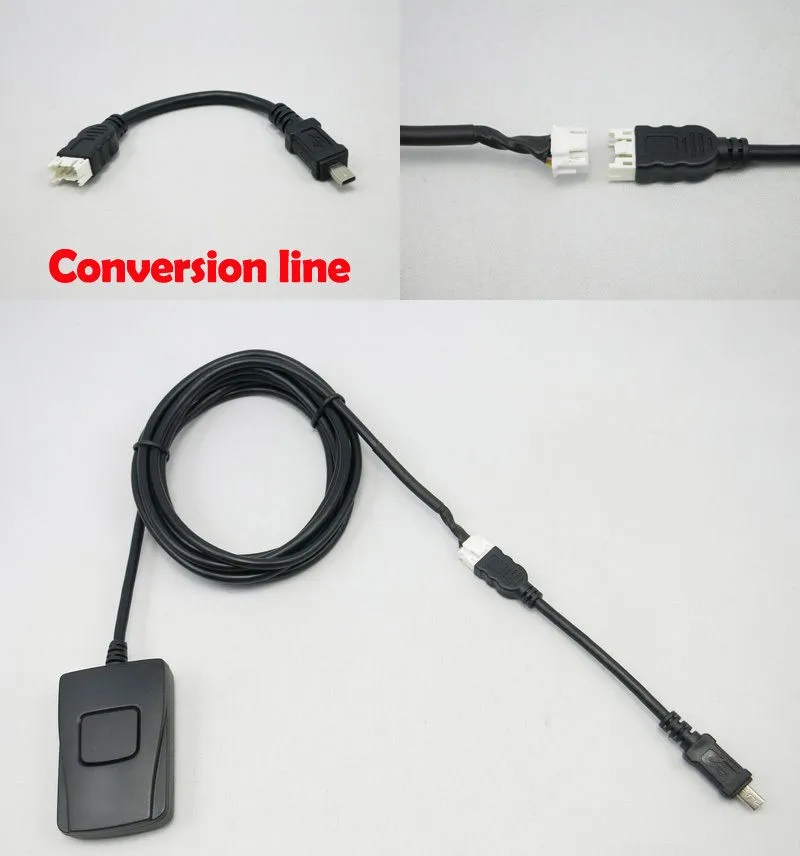

NOTE:if your YT-M05 OR YT-M06 with mini USB connector(the item is 2003 year ago),please contact us,then we will sent a Conversion line for you. Our standard package without Conversion line.






Bluetooth module cable length: 200cm;

Microphone cable length: 200cm

Packing box: 150 x 105 x 60mm

Gross weight:150g;


100units/big carton

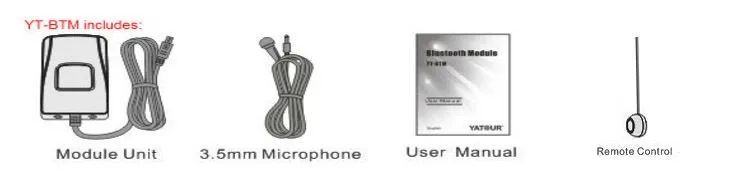

Module Unit*1(2 meters long)

3.5mm Microphone*1 (2 meters long)

Remote Control Unit*1 (Optional, 2 meters long)

User Manual*1



This is a universal additional kit (add-on accessory) for YT-M05 and YT-M06 and YT-M07, integrates Bluetooth Hands free (HFP) and Bluetooth Audio playback (A2DP) music streaming into your car stereo system. It supports operations of Answer/Hang-up phone call and Pause/Play A2DP playback via button on YT-BTM  or Seek+ button or Fast Forward button of radio.





1. Hands free phone call via factory car stereo system.

2. Wireless Bluetooth A2DP music streaming into factory car stereo system.

3. Controlled via YT-BTM button,YT-REMO button, car radio button and Steering wheel button.

4. Excellent quality sound from radio speaker and from microphone for HFP and A2DP.

5.LED indicator continuously displays the working status of YT-BTM

6. Automaticly pauses when a phone call is made or received, then resume once the call has ended (Requires pressing CD button to resume A2DP playback for Apple devices).

7. Supports connected with only one Bluetooth device each time.

    Supports Bluetooth enabled devices like iPhone,Android phone,other bluetooh capable phone ,bluetooth enabled GPS,etc.

8. Bluetooth distance limitation: 6-8 meters.

9. Bluetooth pairing needs to be performed only once.

   After pairing is completed ,your phone will automatically connect to YT-BTM upon ignition start (whether radio on or off) or once your phone is back into discoverable distance.

10. No need to disconnect other audio sources to use Bluetooth.

    Once YT-BTM is in use, other audio sources (USB/SD/iPod/AUX) will be automatically paused (except AUX) and muted.

11. Supports Bluetooth Voice Dialing . Special for mobile phones supporting voice dialing over Bluetooth

12.compatible with Bluetooth version 2.1, and downward compatible with lower Bluetooth version


Note:The Bluetooth handsfree Car Kits should only be used with YATOUR Digital Music Changer or YATOUR iPod Car Adapter
How Does it work:
Instruction for Remote Control Unit:
    Remote Control Unit is offered as an OPTIONAL part of The Bluetooth handsfree Car Kits. This Unit integrates Answer/Hang-up button and LED indicator, these functions are equal to Answer/Hang-up button and LED indicator on  Module Unit
    Remote Control Unit is of compact size, making installation and layout more flexible. When using it, plug the 3.5mm jack into Remote Control slot, and amount the Unit in a proper position.
1. Is YT-BTM able to work independently?
   No, it has to be used together with Yatour YT-M06 or YT-M05.
2. Can I use my own microphone to replace YT-BTM’s microphone?
It is not recommended to use customer\'s own microphone,because a different microphone with different gain factor may reduce sound quality greatly.
3. If the radio is off, can YT-BTM work?
   No, if the radio is off or if it is not under CD mode.YT-BTM will not work normally. But if there is a call coming, customers can immediately turn on the radio and switch to CD mode, and YT-BTM will work normally.
4. How to adjust sound volume of YT-BTM?
   YT-BTM currently does not offer independent sound volume adjusting function, customers can directly control sound volume through car stereo system.
5. How many mobile phones can be connected to YT-BTM at the same time?
   YT-BTM currently can allow being connected with only one mobile phone at one time. YT-BTM requires disconnecting one mobile phone so as to reconnect to another mobile phone.
6. When a call comes in, will the playback of USB/SD/AUX/iPod be mute automatically?
 When a call comes in, YT-M05 iPod playback and YT-M06 USB/SD playback will automatically stop and be mute. AUX playback of YT-M05/YT-M06 will only be mute but not stop as AUX playback is not controlled by Yatour interface
